Specifications

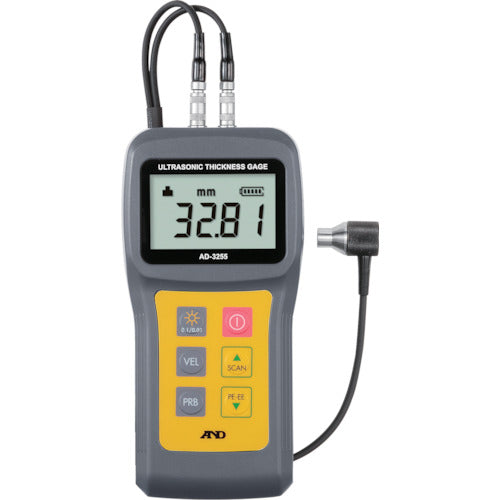

| A&D AD3255 Ultrasonic thickness gauge AD3255 |
| Specifications/Standards: Measurement Method: Ultrasonic Pulse Reflection Method |
| Test piece AD3255-01 included |
| Measurement Frequency: Single-point mode 7 times/second, Scan mode 16 times/second |
| Measurement Range (Pulse/Echo Mode): 7MHz probe AD-3255-02 (standard included probe): 0.8–200.0mm, 5MHz probe AD-3255-03 (optional probe): 1.0–300.0mm, 5MHz probe AD-3255-04 (optional probe): 2.0–300.0mm |
| Power Supply/Battery Life: 2 x AA alkaline batteries / 30+ hours continuous use (25°C, backlight off, 4mm measurement) |
| Measurement Range (mm): 0.8–200.0 (using included probe) |
| Resolution (mm): 0.01/0.1 |
| Measurement Method: Ultrasonic Pulse Reflection Method |
| Width (mm): 73 |
| Depth (mm): 32 |
| Height (mm): 143 |
| Power supply: 2 x AA batteries (not included) |
| Weight: 160g |
| Country of origin: China |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
