Specifications

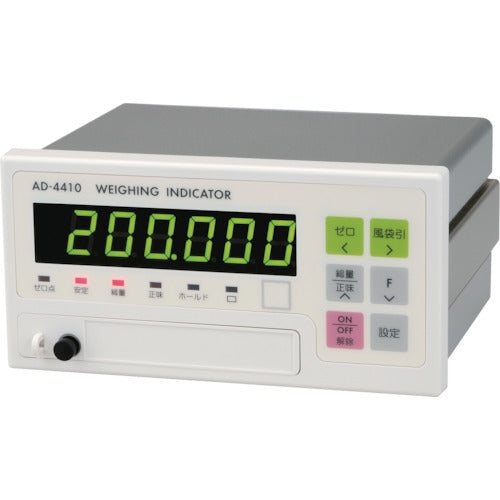

| A&D AD4410 load cell Weighing indicator |
| Specifications: Power Supply: AC 100-240V (50/60Hz) |
| Remote Sensing Function |
| Maximum Load Cell Count: Up to 8 x 350Ω load cells can be connected |
| Control I/O: 3 inputs, 3 outputs (standard) |
| Input Sensitivity: 0.15μV/D or higher |
| Zero Adjustment Range: -35mV to 35mV |
| Load Cell Applied Voltage: DC 5V ±5%, 120mA |
| Temperature Coefficient: Zero point ±0.02μV/℃ Typ., ±0.1μV/℃ Max., Span ±3ppm/℃ Typ., ±15ppm/℃ Max. |
| Nonlinearity: 0.005% of F.S. |
| Display Unit: Dustproof and Waterproof (Panel Mounted) |
| Width (mm): 144 |
| Depth (mm): 128.7 |
| Height (mm): 72 |
| Weight: 800g |
| Country of origin: Japan |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
