Specifications

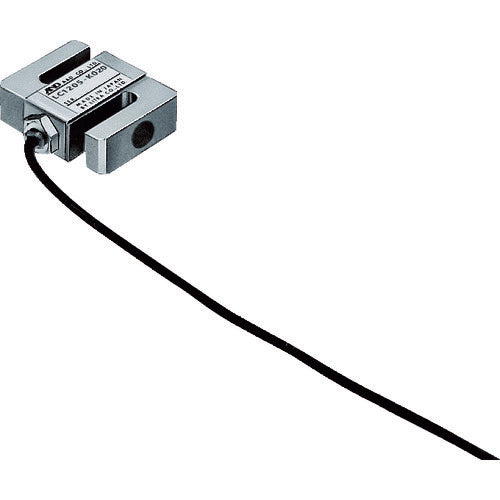

| A&D LC1205-K020 S-shaped general-purpose load cell LC1205-K020 |
| Specifications: Input terminal resistance: approx. 400Ω, Output terminal resistance: 350±3.5Ω |
| Insulation resistance: 5000MΩ/DC50V |
| Temperature compensation range: -10℃ to 60℃ |
| Temperature effect of zero point: 0.07% of R.O./10℃ |
| Temperature effect of output: 0.02% of Load/10℃ |
| Rated capacity (kN): 0.2 |
| Cable thickness: φ6 |
| Cable length (m): 3 |
| Dustproof/waterproof: IP54 |
| Zero balance: ±2% of R.O. |
| Rated output: 2.0394 (LC1205-K020/LC1205-K050: 1.5296) mV/V±0.5% |
| Allowable overload: 200% of R.C., Limit Overload: 200% of R.C. (LC1205-K020 and LC1205-K050: 250%) |
| Overall Error: 0.02% of R.O. |
| Recommended Applied Voltage: DC 5-12V, Maximum Applied Voltage: DC 15V |
| Weight: 300g |
| Set Contents/Accessories: Instruction Manual |
| Country of Origin: Japan |
