Specifications

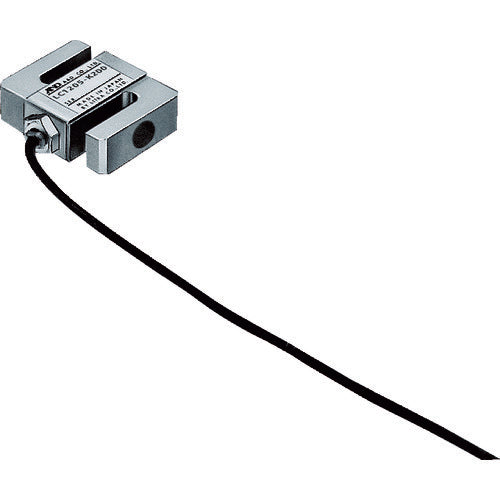

| A&D LC1205-K200 S-shaped general-purpose load cell LC1205-K200 |
| Specifications: Input terminal resistance: approx. 400Ω, Output terminal resistance: 350±3.5Ω |
| Insulation resistance: 5000MΩ/DC50V |
| Temperature compensation range: -10℃ to 60℃ |
| Temperature effect of zero point: 0.07% of R.O./10℃ |
| Temperature effect of output: 0.02% of Load/10℃ |
| Rated capacity (kN): 2 |
| Cable thickness/length: φ6/3m |
| Dustproof/Waterproof: IP54 |
| Zero balance: ±2% of R.O. |
| Recommended applied voltage: DC5～12V, Maximum applied voltage: DC15V |
| Total error: 0.02% of R.O. |
| Allowable overload: 200% of R.C., Limit overload: 200% (250% for LC1205-K020 and LC1205-K050) of R.C. |
| Rated output: 2.0394 mV/V ±0.5% (LC1205-K020 and LC1205-K050: 1.5296 mV/V) |
| Weight: 500 g |
| Set contents/Accessories: Instruction manual |
| Country of origin: Japan |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
