Specifications

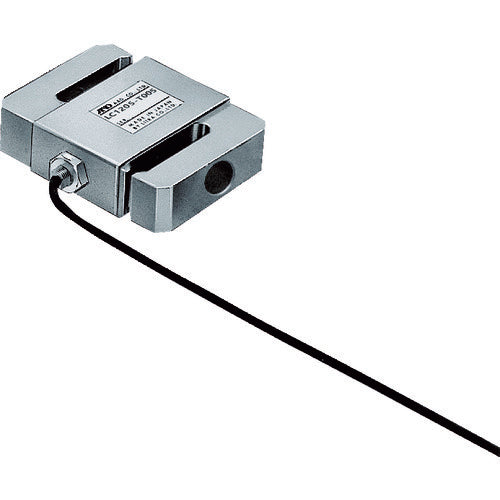

| A&D LC1205-T005 S-shaped general-purpose load cell LC1205-T005 |
| Specifications: Temperature Compensation Range: -10°C to 60°C |
| Zero Point Temperature Effect: 0.07% of R.O./10°C |
| Output Temperature Effect: 0.02% of Load/10°C |
| Cable Thickness/Length: φ6/3m |
| Dustproof/Waterproof: IP54 |
| Rated Capacity (kN): 50 |
| Input Terminal Resistance: Approx. 400Ω, Output Terminal Resistance: 350±3.5Ω |
| Insulation Resistance: 5000MΩ/DC50V |
| Total Error: 0.02% of R.O. |
| Allowable Overload: 200% of R.C., Limit Overload: 200% of R.C. |
| Rated Output: 2.0394mV/V±0.5% |
| Recommended Applied Voltage: DC5-12V, Maximum Applied Voltage: DC15V |
| Zero Balance: ±2% of R.O. |
| Weight: 1.9kg |
| Set contents/accessories: Instruction manual |
| Country of origin: Japan |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
