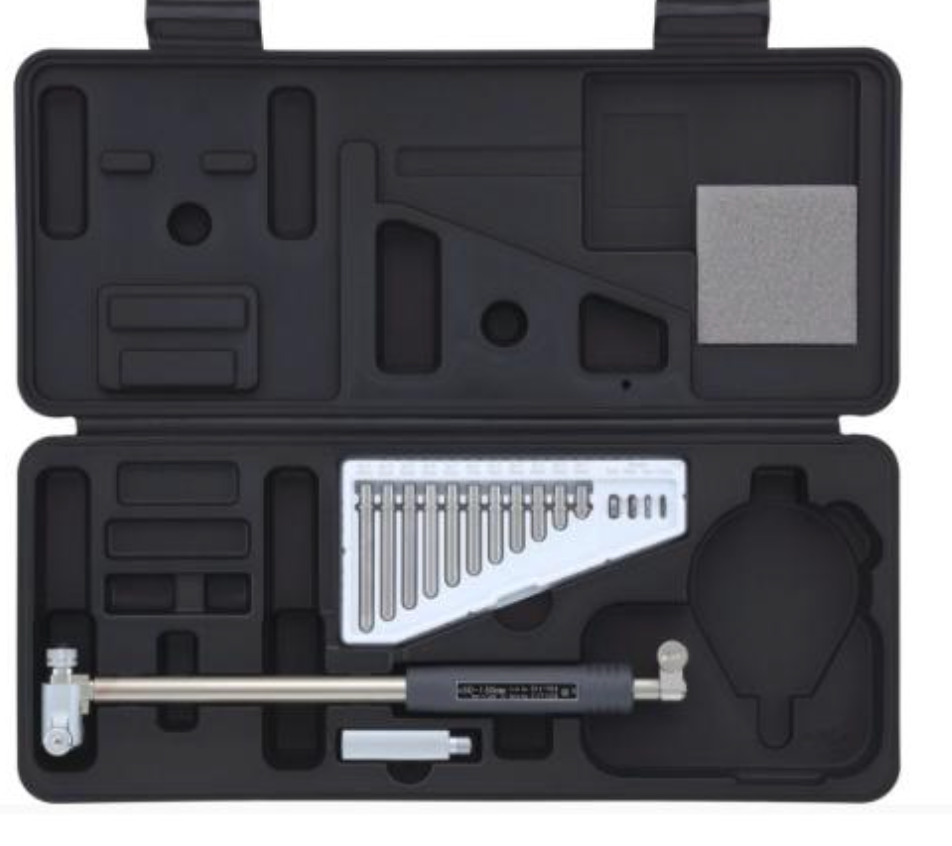

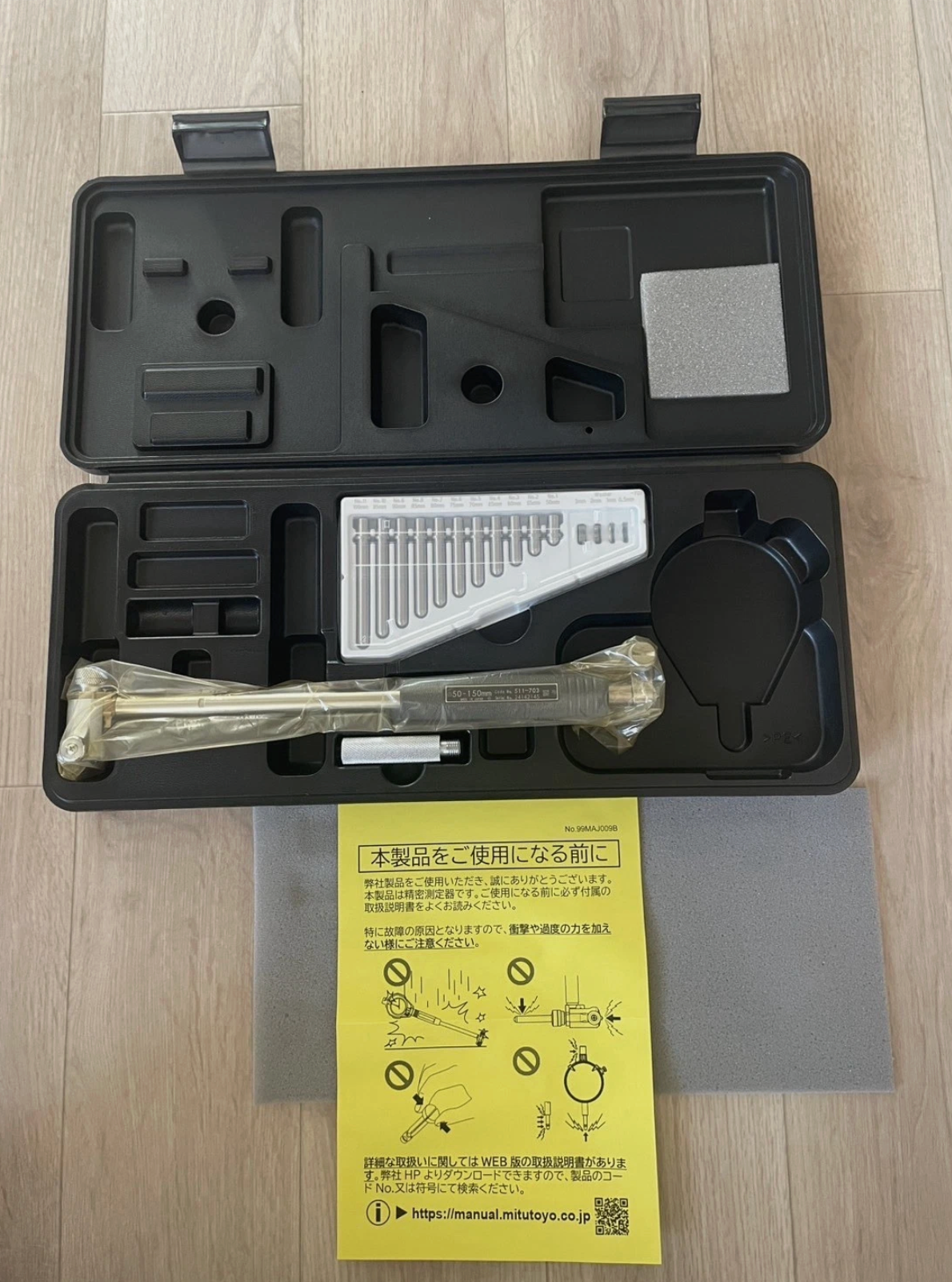

MITUTOYO 511-703 Bore Gauge Cylinder Gauge 50-150mm Dial Type Made in Japan

Features

Contact point made of tungsten carbide for excellent wear resistance

Measuring head and interchangeable anvils are constructed from high-durability tungsten carbide

Designed for high-precision internal diameter measurement

Excellent repeatability and accuracy for professional measurement tasks

Application

Suitable for measuring internal diameters in machining, tooling, and inspection processes

Notes

Dial gauge and protective cover are sold separately

Product Specifications

Manufacturer Code: 511-703

Measuring Range: 50–150 mm

Wide-range Accuracy: ±2 µm

Repeatability: 0.5 µm

Number of Anvils: 11

Number of Spacers: 4

Recommended Accessories (Sold Separately)

Dial Gauge (0.01 mm): No. 2972.2046SB

Dial Gauge (0.001 mm): No. 2900SB-10 / 2109SB-10 / 2113SB-10

Protective Cover: No. 21DZA000
