Specifications
- Specifications/Standards: Measurement data output terminal included
- Constant pressure device included
- Measurement range (mm): 25-50
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±3
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 422-231-30
- Feeding mechanism: Spindle linear type
- Measuring surface shape: Blade type
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide battery (SR44) x 1 (included)
- a: 12.2
- b: 50
- C: 12.6
- L: 25
- Position detection method: Electromagnetic induction rotary engine Coda (BLM-MX), Capacitive Absolute Encoder (BLM-QMX)
- Tip Shape: Type A
- Parallelism (μm): 3
- Minimum Display Unit (mm): 0.001

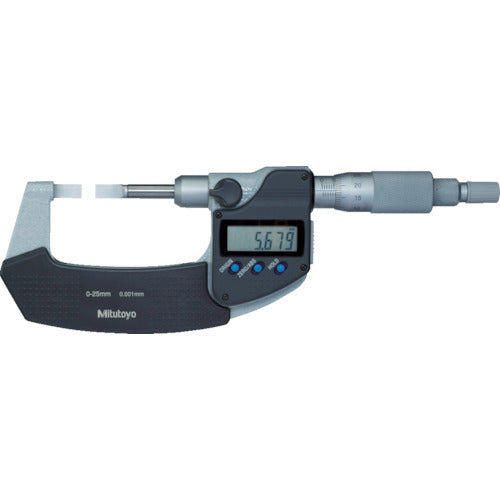

- Model Number: BLM-50MX
- Battery Life: Approximately 2.4 years under normal use (BLM-MX), Approximately 5 years under normal use (BLM-QMX)
- Weight/Unit of Weight: 465g
- Set Contents/Accessories: 1 Reference Rod (Measurement range 0-25mm, excluding 0-30mm), 1 Spanner (No. 301336) (BLM-MX)
- Country of Origin: Japan
