Specifications
- Specifications/Standards: Measurement data output terminal included
- Measurement range (mm): 0 to 25
- Minimum display (mm): 0.001
- Maximum permissible error (μm): ±4
- Protection class: IP65
- Power supply: Button-type silver oxide battery (SR44) x 1 (included)
- Manufacturer code: 323-250-30
- Measurable module: 0.5 to 6
- Measuring surface shape: Tooth thickness type
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide battery (SR44) x 1 (included)
- a: 9. 2
- b: 25
- c: 4.5
- e: 20
- f: 8
- L: 0
- t: 0.7
- Position detection method: Electromagnetic induction rotary encoder
- Parallelism (μm): 4
- Flatness (μm): 1
- Minimum display unit (mm): 0.001
- Measuring probe diameter (mm): φ20

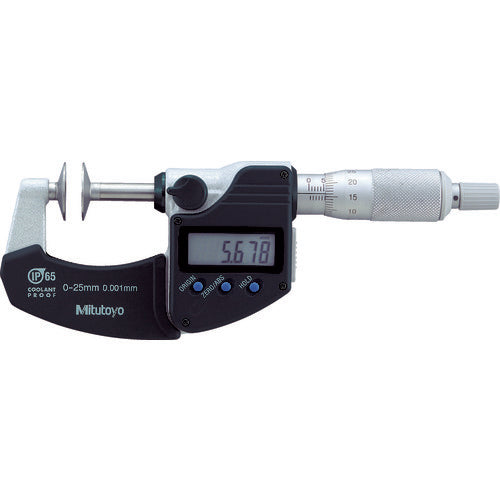

- Model number: GMA-25MX
- Battery life: Approximately 2.4 years under normal use
- Weight/Weight unit: 290g
- Set contents/Accessories: Spanner (No. 301336) 1 piece
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
