Specifications

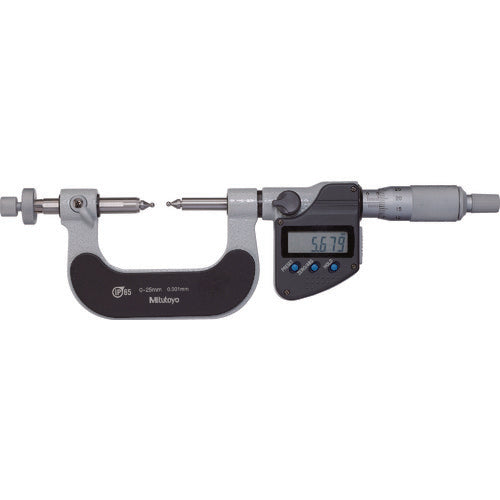

- Specifications/Standards: Ball Gear Micrometer
- Precision steel balls are mounted on both measuring surfaces to measure the over-pin diameter of gears.
- Measurement data output terminal available.
- Measurement range (mm): 0-25
- Minimum display (mm): 0.001
- Maximum permissible error (μm): 3
- Protection class: IP65
- Power supply: Button-type silver oxide battery SR44
- Manufacturer code: 324-251-30
- Measuring surface shape: Ball measuring probe
- Constant pressure device: Ratchet stop
- Power supply (V): Button-type silver oxide battery SR44
- b: 32
- d: 64
- Position detection method: Electromagnetic induction rotary encoder
- Minimum display unit (mm): 0.001
- Symbol: GMB-25MX
- Spindle feed error (μm): 3
- Battery life: Approximately 2.4 years under normal use
- Weight/Weight unit: 420g
- Set contents/Accessories: Spanner (No.301336) 1 piece
- Country of origin: Japan
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
