Specifications

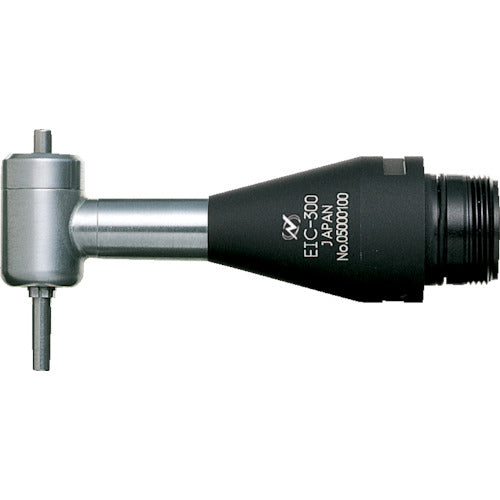

| NAKANISHI EIC-300 Ultra-precision micro grinder Attachment for Espert 500 |
| Specifications/Standards: 90° Angle Attachment for Espert 500 |
| Compatible Motors: ENK-500C, ENK-500T |
| Maximum Operating Speed: 30,000 min⁻¹ or less |
| Overall Length (mm): 64.3 |
| Width (mm): 22.4 |
| Thickness (mm): 22.4 |
| Outer Diameter (mm): Φ22.4 |
| Chuck Inner Diameter (mm): 3.0 |
| Dimensions (mm): 12.8 × 64.3 |
| No-Load Rotation Speed (min⁻¹): 30,000 or less |
| Maximum Operating Speed (min⁻¹): 40,000 or less |
| Material: Stainless steel, etc. |
| Weight/Unit of Weight: 54g |
| Set Contents/Accessories: 0 |
| Collet: φ3.0mm (CHC-3.0) |
| Spanner (20×24): 1 piece |
| Dedicated Collet Wrench: 1 piece |
| Standard included tool set (Disc-specific rubber pads Φ10, 20, 30mm: 1 each; Sandpaper discs Φ11, 21, 31 #180, 600: 5 each) |
| Country of manufacture: Japan |
| RoHS2 |
Note: For US buyers, import duties are included in the price. For buyers outside the US, import duties are not included in the price.
