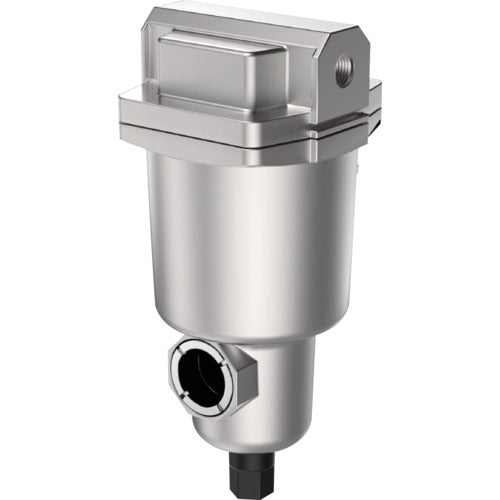

ANEST IWATA ALF1300B-14D Main Line Filter (Dry Filtration), 3 um

Genuine ANEST IWATA ALF1300B-14D, new Japanese-market stock shipped from Japan. A dry-type main line air filter with 3 μm filtration, 1.4 MPa working pressure and automatic drain.

Product identification

• Brand: ANEST IWATA (Iwata)
• Model: ALF1300B-14D
• JAN: 4538995473616
• Country of origin: Japan

Specifications

• Type: Main line filter (dry filter)
• Filtration rating: 3 μm
• Working pressure: 1.4 MPa
• Air flow: 1.3 m³/min
• Connection: Rc3/8 (Rc1/2)
• Flow at Rc3/8 (as listed): 1300 L/min at 0.7 MPa; 1700 L/min at 1.0 MPa; 2400 L/min at 1.4 MPa
• Working fluid: Air
• Fluid temperature: 5-60 °C
• Operating temperature range: -5-60 °C (no freezing)
• Drain: Automatic
• Width: 90 mm
• Depth: 90 mm
• Height: 204 mm
• Weight: 0.9 kg

Before you buy

• Connection: Rc3/8 (Rc1/2) as listed. Check your piping thread before ordering.

In the box

• Standard accessories: Not confirmed

FAQ

Is this a genuine ANEST IWATA product?
Yes. It is new, genuine ANEST IWATA stock from the Japanese market, shipped to you from Japan.

Is there a matching micro mist filter?
We also carry the AMF1200B-14D Air Line Filter.

Specifications: ANEST IWATA product data from a Japanese distributor catalog (TRUSCO Orange Book). Specifications may change; check the maker's documentation for critical use.
